grblHAL Plugin for oled display

Currently only ssd1306 and equivalent (e.g: ssd1315) and sh1106 are supported with a resolution of 128 x 64 pixels.

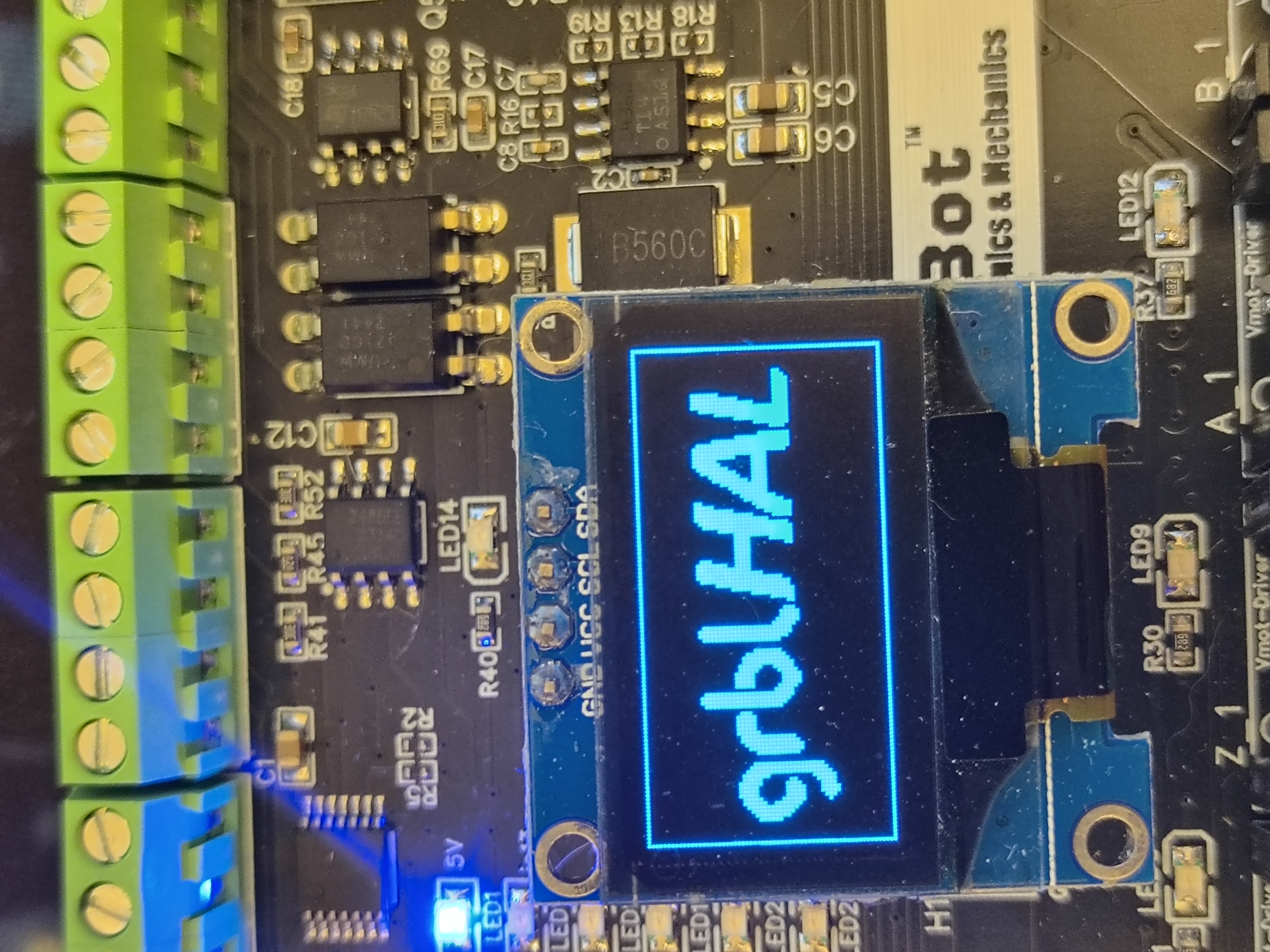

Boot

3 Axis

4 Axis

5 Axis

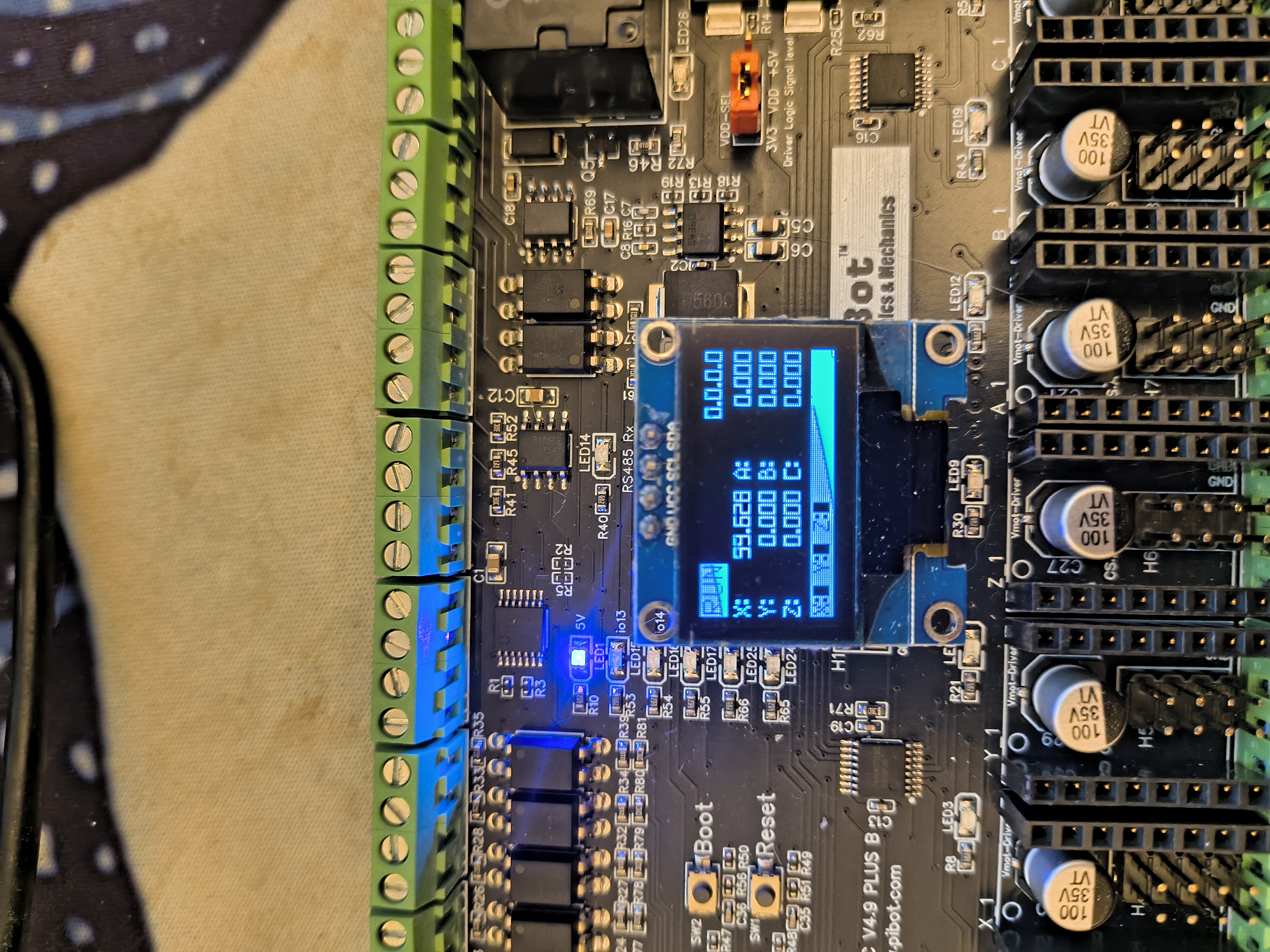

6 Axis

Using grblHAL Web Builder

The plugin is already part of grblHAL so just select it in 3rd party plugin

Manual Installation

I fyou do manual compilation:

• In my_machine.h

#define DISPLAY_ENABLE 33 //DISPLAY_I2C_OLED_1
then
#define DISPLAY_DRIVER 1 //DISPLAY_DRIVER_SH1106
or
#define DISPLAY_DRIVER 2 //DISPLAY_DRIVER_SSD1306
and
#define I2C_ENABLE 1

• Copy plugin repository to main

ESP32/main/plugin_oled_display

• Edit ESP32/main/CMakeLists.txt
  • Set a variable for the path of the plugin source code

set(PLUGIN_OLED_DISPLAY_SOURCE
 plugin_oled_display/plugin_oled_display.c
 plugin_oled_display/oled_display.c
)

- Add the paths to the global source code

list (APPEND SRCS ${PLUGIN_OLED_DISPLAY_SOURCE})

So you should get something like this:

set(USB_SOURCE
 usb_serial.c
)

set(PLUGIN_OLED_DISPLAY_SOURCE
 plugin_oled_display/plugin_oled_display.c
 plugin_oled_display/oled_display.c
)

if(EXISTS ${CMAKE_CURRENT_LIST_DIR}/../3rdParty.cmake)
include(${CMAKE_CURRENT_LIST_DIR}/../3rdParty.cmake)
endif()

if("${target}" STREQUAL "esp32s3")
list (APPEND SRCS ${USB_SOURCE})
list (APPEND SRCS ${I2S_S3_SOURCE})
else()
list (APPEND SRCS ${I2S_SOURCE})
endif()

list (APPEND SRCS ${MY_PLUGIN_SOURCE})
list (APPEND SRCS ${NETWORKING_SOURCE})
list (APPEND SRCS ${KEYPAD_SOURCE})
list (APPEND SRCS ${TRINAMIC_SPI_SOURCE})
list (APPEND SRCS ${TRINAMIC_UART_SOURCE})
list (APPEND SRCS ${WEBUI_SOURCE})
list (APPEND SRCS ${SDCARD_SOURCE})
list (APPEND SRCS ${BLUETOOTH_SOURCE})
list (APPEND SRCS ${MODBUS_SOURCE})
list (APPEND SRCS ${SPINDLE_SOURCE})
list (APPEND SRCS ${EEPROM_SOURCE})
list (APPEND SRCS ${LASER_SOURCE})
list (APPEND SRCS ${MISC_PLUGINS_SOURCE})
list (APPEND SRCS ${EMBROIDERY_SOURCE})
list (APPEND SRCS ${OPENPNP_SOURCE})
list (APPEND SRCS ${PLUGIN_OLED_DISPLAY_SOURCE})

Tools

Some tools are available if you want to do more customization - only usable with manual installation.

1. Font Converter (font_converter.py) - Converts TrueType fonts to OLED-compatible bitmap font arrays
2. PNG Converter (png_converter.py) - Converts PNG images to XBM format for OLED display, if you want to change boot screen for example.
3. Font Metrics Extractor (ttf_info_extractor.py) - Advanced tool for analyzing font metrics and diagnosing rendering issues
4. Font Generator (font_generator.py) - Create custom bitmap fonts by editing pixel-perfect templates
