Add hide/show interactions to Legend

[fatteneder]

Description

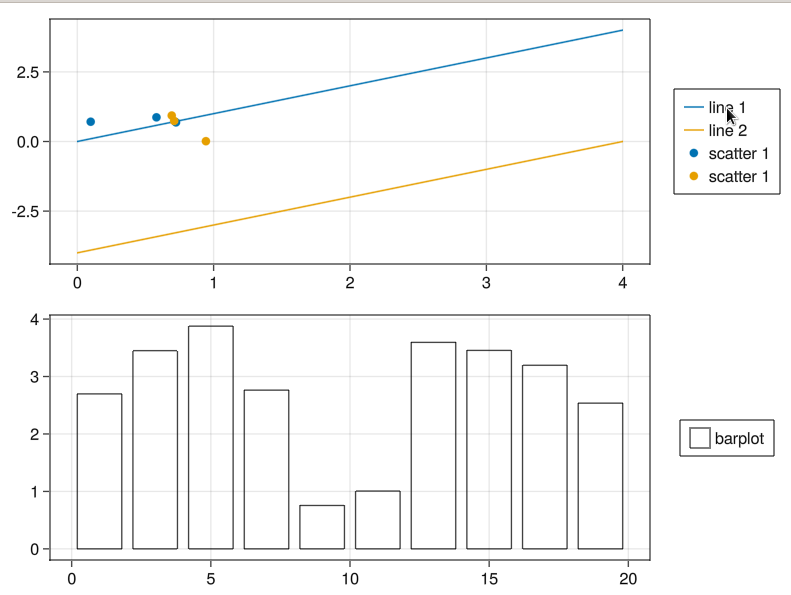

Adds the ability to toggle plot elements by clicking on their label inside a Legend.
Mimics gnuplots toggling behavior.

The functionality relies on <:AbstractPlot objects having a visible attribute. If there isn't one, we still put a shade above the legend entry.

Type of change

Delete options that do not apply:

• New feature (non-breaking change which adds functionality)

Checklist

• Added an entry in NEWS.md (for new features and breaking changes)
• Added or changed relevant sections in the documentation
  I think this not needed.
• Added reference image tests for new plotting functions, recipes, visual options, etc.
  Should we add a ref image that uses pick and generates a plot with missing elements? And can I even add one myself?

[fatteneder]

We should also make it so that either clicking the title or right clicking anywhere in the legend box toogles all entries.

[jkrumbiegel]

That's cool! Also it's probably a behavior many people expect from a legend nowadays.

I'm wondering how this can be made to work with multiple axes that share a legend. Usually the legend items are constructed separately in that case, or one plot object is passed to the constructor as a proxy for all others. Which would mean that no or only one facet would have its plot hidden with the current technique.

[fatteneder]

I think I have not used Legend enough to understand what you are describing.
Could you maybe provide a MWE of the setup you have in mind?
Or is the example with merge & unique in the docs here close to what you want to do? https://docs.makie.org/v0.17.13/examples/blocks/legend/index.html

[jkrumbiegel]

I just mean that semantically, one legend entry often describes multiple plots across facets. So you'd expect all of them to turn off, but the legend might have been created referencing only one (or even none) of them. So this method needs to be able to accomodate that scenario, where a list of related plots is passed by the user somehow.

[fatteneder]

Still not sure if I understand correctly.
Are you maybe referring to this comment:

We should also make it so that either clicking the title or right clicking anywhere in the legend box toogles all entries.

Now I can see what the problem would be here.

Nevertheless I could gather some more things from your comment that we should take care of:

• If there is no plot connected to a label, then we should disable the toggle. This can be done easily, I think.
• If one entry in a legend refers to multiple plot elements (which can be spread across more than one Axis), we want that clicking the label hides/shows all of them simultaneously. I did not test yet, but I thought the current implementation might do that already, because the mouse event goes through all the <:LegendEntrys that belong to a label's element connection, cf. this https://github.com/MakieOrg/Makie.jl/pull/2276/files#diff-93b8d91868f7576e0971bdc75440cc6f9bfa0562952fbd630d52cd2a84ccce36R243-R247
• Some doc examples show the use of LineElement etc. As it is now you can only add a single handle to that using the plot kwarg. We should allow to pass a vector of handles so that we can connect multiple plot elements to one legend entry, which (I think) is automatically done if you only use Legend.

Again, I am really sorry that I don't understand. Usually I am not that slow 😄

[jkrumbiegel]

Yeah maybe your last bullet point covers what I mean. I was thinking of facet plots where you have the same line plot let's say 12 times across 12 axes, but you haven't referenced all of them at once when creating the legend. I didn't check your implementation yet but if you added a plots kwarg where one could pass a vector that could take care of it.

[fatteneder]

I added three more things.

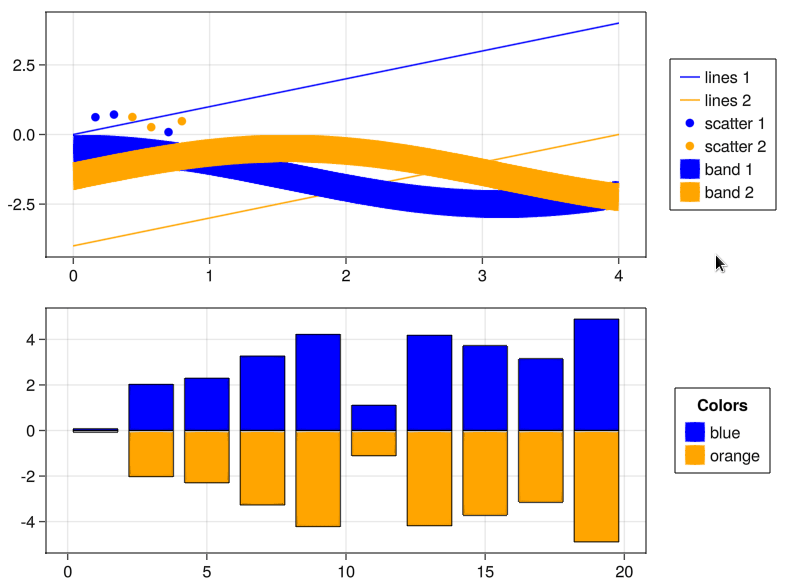

I illustrate them with the following MWE:

using GLMakie, Random
GLMakie.activate!()

Random.seed!(145)

f = Figure()

ax  = Axis(f[1,1])
lb = lines!(ax, 0:4, 0:4, color=:blue, label="lines 1")
lo = lines!(ax, 0:4, -4:0, color=:orange, label="lines 2")
sb = scatter!(ax, rand(3), rand(3), color=:blue, label="scatter 1")
so = scatter!(ax, rand(3), rand(3), color=:orange, label="scatter 2")
x = LinRange(0, 4, 100)
slb = band!(ax, x, cos.(x) .- 1, cos.(x) .- 2, color=:blue, label="band 1")
slo = band!(ax, x, sin.(x) .- 1, sin.(x) .- 2, color=:orange, label="band 2")

ax2 = Axis(f[2,1])
x, y, yerr = 1:2:20, 5 * rand(10), 0.4 * abs.(randn(10))
bb = barplot!(ax2, x, y; strokewidth = 1, color = :blue, label="barplot 1")
bo = barplot!(ax2, x, -y; strokewidth = 1, color = :orange, label="barplot 2")

Legend(f[1,2], ax)
Legend(f[2,2],
       [ PolyElement(plots = [lb, sb, slb, bb], color = :blue),
         PolyElement(plots = [lo, so, slo, bo], color = :orange) ],
       [ "blue", "orange" ], "Colors" )

f

1. Construct <:LegenEntrys from a vector of handles. Clicking the entry then toggles all the plot elements in this group. If you watch closely you can spot an issue where plot elements are toggled but their shades in other legends are not. I think this is what Julius mentioned above.


2. A right click anywhere in a legend toggles all the entries in that legend.


3. Middle click anywhere in a legend shows all elements again and following middle clicks just switch to toggeling.


Side note: scatterlines does not provide a visible attribute. My bad, it does work.

[fatteneder]

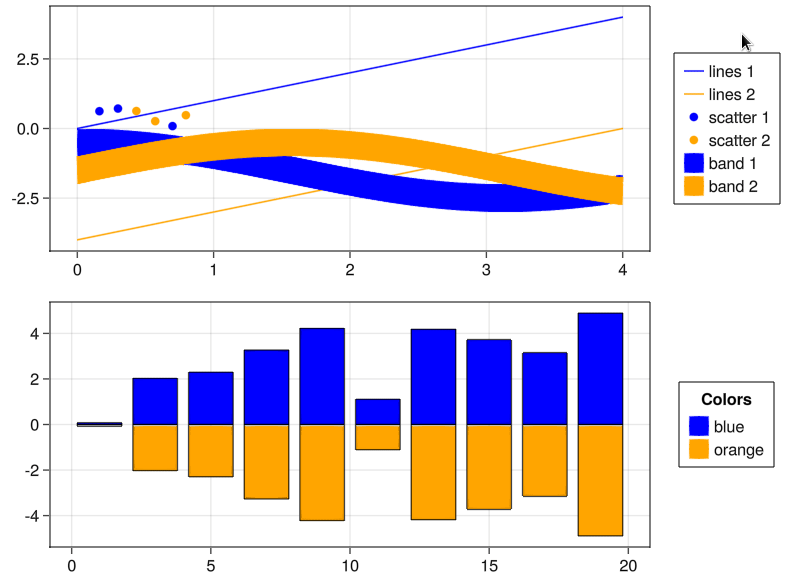

I reworked the toggling strategy again so that it addresses the problem of partly hidden elements. We now use a hatched box if not all plots of an element are either visible or hidden. If all are hidden then we put a full box. I also simplified the mouse interactions: Left click now toggles all elements of an entry and right click anywhere in the legend resets all all plots of all elements, no more middle click.

There is also a question about what to do with plot elements that are already hidden when the legend is created. Consider the following

using GLMakie, Random
GLMakie.activate!()

Random.seed!(145)

f = Figure()

ax  = Axis(f[1,1])
lb = lines!(ax, 0:4, 0:4, color=:blue,    label="lines 1", visible=true)
lo = lines!(ax, 0:4, -4:0, color=:orange, label="lines 2", visible=false)
Legend(f[1,2], ax)

f

The plot would start with only lb shown in the axis but with two legend entries which both appear to be shown. Clicking the second entry would show lo but put a shade on its legend entry. I think we have to live with that, otherwise it will be difficult to decide when to put a shade when there are multiple plot elements associated to a legend entry. The above example also appears artificial to me, because when I plot stuff I usually want to see it too (unless I tinker around with Block elements or so).

Otherwise, I think this would be ready for a review.

[fatteneder]

Here is a list of plot elements for which toggling does not work:

• spy (addressed by Fix visible=false not picked up by spy in GLMakie #2288)
• timeseries (is that still broken? I could not see any lines) works just fine, my mwe was wrong

I could not test for the following ones because they cannot be to added to Legends yet. IIUC the problem here is that there is no default implementation for legendelements, cf. #1703.

• heatmap
• image
• annotations and text (might not even make sense)
• mesh
• meshscatter
• volumeslices
• volume
• surface
• wireframe

Last but not least: The legend symbol for arrows could be improved. Right now it works like that of a scatterlines, but we could make it so that the arrow head sits at one of the ends of the symbol (or at both).

[fatteneder]

The WGLMakie failure seems to be due to a problem with LinePattern.
However, I cannot test locally because test WGLMakie fails for a different reason on my machine.

[fatteneder]

This here might explain why the WGLMakie tests are failing:

Makie.jl/WGLMakie/test/runtests.jl

Line 55 in 36ad29f

"pattern barplot", # not implemented yet

[ffreyer]

I merged master and

• refactored event handling to avoid creating multiple mouse state machines (this is rather slow, especially with WGLMakie I believe)
• fixed and simplified right click (dropped checks to avoid visible triggers - these should be pretty cheap)
• did bit of general cleanup (rename some variables, avoid some temporary arrays, clean up visible listeners, fix cleanup of entryrects)

TODO:

• Right click doesn't "toggle" but makes everything visible.
• Middle mouse button interaction is gone
• Safeguards against legend entries that do not keep track of plots (deprecate old struct and warn?)
• fix test errors
• add new tests/refimages
• add example in docs

If you watch closely you can spot an issue where plot elements are toggled but their shades in other legends are not.

Need to think about whether this is fixable without too much effort

[ffreyer]

If you watch closely you can spot an issue where plot elements are toggled but their shades in other legends are not.

Need to think about whether this is fixable without too much effort

Ah this is not the case anymore,

I think I added/updated everything that's necessary to merge this pr now. Refimg tests looked a expected in e87e2e3. Benchmark plots looked fine too

[SimonDanisch]

Shouldn't we just use something like this?

function get_plots(le::LegendElement)
    hasfield(typeof(element), :plots) && return le.plots
     @warn "..."
    return nothing
end

[SimonDanisch]

I feel like we should just guarantee that every plot has a visibility field.

[ffreyer]

We should, but I see that as wasted effort before #4630.

[SimonDanisch]

should use the get_plots(le)

[SimonDanisch]

Closing in favor of: #4927
