Explore waveform rendering themes #7
Description
It would be awesome to support different ways of rendering waveforms on the console.
Some examples for inspiration;
Here Is an example; https://github.com/mithro/i2cslave/blob/ad4335fb1ef5bb46d652e44b813c559f71b37409/i2cslave/targets/i2c_munger.py#L83-L98
S 0 1 2 3 4 5 6 7 A
sda ▔▔\▁▁▁▁▁----XXXX----XXXX----XXXX----XXXX----XXXX----XXXX----XXXX----▁▁▁▁▁▁▁▁▁/▔▔▔▔▔▔▔
sda_oe ▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔\▁▁▁▁▁▁▁▁/▔▔▔▔▔▔▔
sda_w ▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁
sda_r ▔▔\▁▁▁▁▁1-------0-------1-------0-------0-------0-------0-------0------------/▔▔▔▔▔▔▔
scl_r ▔▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔▔
S 0 1 2 3 4 5 6 7
sda ▔▔\▁▁▁▁▁----XXXX----XXXX----XXXX----XXXX----XXXX----XXXX----XXXX----XXXX----
sda_oe ▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔\▁▁▁▁▁▁▁/▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔
sda_w ▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁
sda_r ▔▔\▁▁▁▁▁1-------0-------1-------0-------0-------0-------0-------0-------/▔▔▔
scl_r ▔▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔\▁▁▁/▔▔▔
Example from UCSBarchlab/PyRTL#101 (comment)
▏0 ▏5 ▏10
(Probe-1 : v[0] : tmp110_surfnoc_line95) _________________________ _______________╱‾‾‾‾╲____ __________
(Probe-2 : v[1] : tmp164_surfnoc_line95) _________________________ _________________________ __________
(Probe-3 : v[2] : tmp218_surfnoc_line95) _________________________ ╱‾‾‾‾╲___________________ __________
(Probe-4 : v[3] : tmp272_surfnoc_line95) _________________________ _________________________ _____╱‾‾‾‾
data_in 0x1 ╳0x2 ╳0x3 ╳0x4 ╳0x5 ╳0x6 ╳0x7 ╳0x8 ╳0x9 ╳0x0 ╳0x1 ╳0x2
full _________________________ _________________________ __________
read_buffer_select 0x0 ╳0x2 ╳0x1 ╳0x3 ╳0x0 ╳0x2 ╳0x1 ╳0x3 ╳0x0 ╳0x2 ╳0x1 ╳0x3
read_enable ‾‾‾‾‾‾‾‾‾‾╲______________ ╱‾‾‾‾‾‾‾‾‾╲____╱‾‾‾‾╲____ ╱‾‾‾‾‾‾‾‾‾
read_output 0x0 ╳0x5 ╳0x0 ╳0x7 ╳0x6 ╳0x0 0x0 ╳0x7
valid _________________________ ╱‾‾‾‾╲_________╱‾‾‾‾╲____ _____╱‾‾‾‾
write_buffer_select 0x2 ╳0x0 ╳0x3 ╳0x1 ╳0x2 ╳0x0 ╳0x3 ╳0x1 ╳0x2 ╳0x0 ╳0x3 ╳0x1
write_enable ____________________╱‾‾‾‾ ‾‾‾‾‾‾‾‾‾‾╲_________╱‾‾‾‾ ╲____╱‾‾‾‾

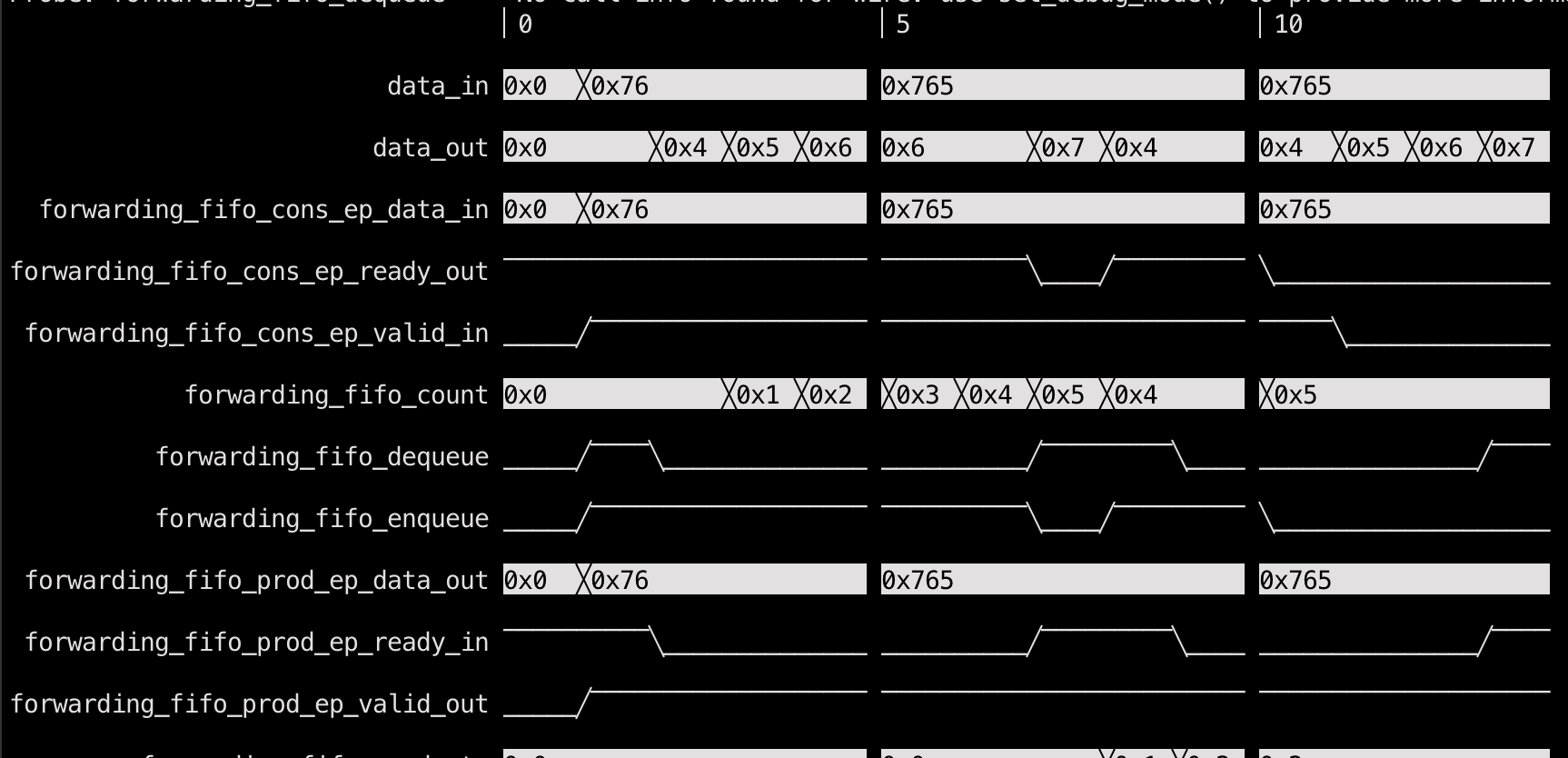

There are some very cool examples at UCSBarchlab/PyRTL#284 and https://ucsbarchlab.github.io/PyRTL/
Undulate recently added support at LudwigCRON/undulate#35 (comment)
